Data Structures | |
| struct | IfxScuCcu_CcuconRegConfig |
| Configuration structure type for CCUCON registers. More... | |
| struct | IfxScuCcu_InitialStepConfig |
| Configuration structure type for the Pll initial step. This structure must be used to configure the P, N and K2 dividers for initial step. More... | |
| struct | IfxScuCcu_PllStepsConfig |
| Configuration structure type for the Pll Steps for current jump control. More... | |
| struct | IfxScuCcu_ClockDistributionConfig |
| Configuration structure type for all the CCUCON registers to configure clock distribution. More... | |
| struct | IfxScuCcu_FlashWaitstateConfig |
| Configuration structure type for the Flash waitstate configuration. More... | |
| struct | IfxScuCcu_SysPllConfig |
| Configuration structure type for the System Pll step. This structure must be used to configure the P, N and K1 dividers . More... | |
| struct | IfxScuCcu_Config |
| Configuration structure SCU module. More... | |
| struct | IfxScuCcu_ErayPllConfig |
| Configuration structure for E-ray PLL. More... | |
Detailed Description
Data Structure Documentation
| struct IfxScuCcu_CcuconRegConfig |
Configuration structure type for CCUCON registers.
Definition at line 709 of file IfxScuCcu.h.
| Data Fields | ||
|---|---|---|
| uint32 | mask | CCUCON Mask to select the bit fields to be updated. |
| uint32 | value | CCUCON Register value to be updated. |
| struct IfxScuCcu_InitialStepConfig |
Configuration structure type for the Pll initial step. This structure must be used to configure the P, N and K2 dividers for initial step.
Definition at line 718 of file IfxScuCcu.h.
| Data Fields | ||
|---|---|---|
| uint8 | k2Initial | K2 divider value for basic (initial) step. |
| uint8 | nDivider | N divider value for basic (initial) step. |
| uint8 | pDivider | P divider value for basic (initial) step. |
| float32 | waitTime | Wait time for for basic (initial) step. |
| struct IfxScuCcu_PllStepsConfig |
Configuration structure type for the Pll Steps for current jump control.
Definition at line 728 of file IfxScuCcu.h.
| Data Fields | ||
|---|---|---|
| IfxScuCcu_PllStepsFunctionHook | hookFunction | Hook function called at the end of this step. |
| uint8 | k2Step | K2 divider value for this step. |
| float32 | waitTime | Wait time for for this step. |
| struct IfxScuCcu_ClockDistributionConfig |
Configuration structure type for all the CCUCON registers to configure clock distribution.
Definition at line 741 of file IfxScuCcu.h.
| Data Fields | ||
|---|---|---|
| IfxScuCcu_CcuconRegConfig | ccucon0 | CCUCON0 Register configuration. |
| IfxScuCcu_CcuconRegConfig | ccucon1 | CCUCON1 Register configuration. |
| IfxScuCcu_CcuconRegConfig | ccucon2 | CCUCON2 Register configuration. |
| IfxScuCcu_CcuconRegConfig | ccucon5 | CCUCON5 Register configuration. |
| IfxScuCcu_CcuconRegConfig | ccucon6 | CCUCON6 Register configuration. |
| IfxScuCcu_CcuconRegConfig | ccucon7 | CCUCON7 Register configuration. |
| IfxScuCcu_CcuconRegConfig | ccucon8 | CCUCON8 Register configuration. |
| struct IfxScuCcu_FlashWaitstateConfig |
Configuration structure type for the Flash waitstate configuration.
Definition at line 754 of file IfxScuCcu.h.
| Data Fields | ||
|---|---|---|
| uint32 | mask | FLASH.FCON Mask to select the bit fields to be updated. |
| uint32 | value | FLASH.FCON Register value to be updated. |

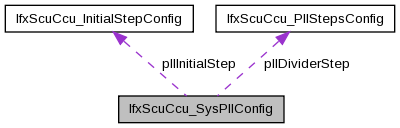

| struct IfxScuCcu_SysPllConfig |
Configuration structure type for the System Pll step. This structure must be used to configure the P, N and K1 dividers .
Definition at line 763 of file IfxScuCcu.h.
| Data Fields | ||
|---|---|---|
| uint8 | numOfPllDividerSteps | Number of PLL divider steps during clock throttling. |
| IfxScuCcu_PllStepsConfig * | pllDividerStep | Pointer to the array of Pll divider step configuration. |
| IfxScuCcu_InitialStepConfig | pllInitialStep | Configuration of first step which is same as internal osc frequency. |
| struct IfxScuCcu_Config |
Configuration structure SCU module.
Definition at line 776 of file IfxScuCcu.h.
| Data Fields | ||
|---|---|---|
| IfxScuCcu_ClockDistributionConfig | clockDistribution | Configuration of of bus clocks and other module clock distribution. |
| IfxScuCcu_FlashWaitstateConfig | flashFconWaitStateConfig | Configuration of flash waitstate. |
| IfxScuCcu_SysPllConfig | sysPll | System PLL configuration. |
| uint32 | xtalFrequency | Xtal Frequency. |
| struct IfxScuCcu_ErayPllConfig |
Configuration structure for E-ray PLL.
Definition at line 786 of file IfxScuCcu.h.
| Data Fields | ||
|---|---|---|
| IfxScuCcu_InitialStepConfig | pllInitialStep | Configuration of first step which is same as internal osc frequency. |
