Shell functions. More...

#include "StdIf/IfxStdIf_DPipe.h"

Data Structures
struct	Ifx_Shell_Command
	Shell command object. More...

struct	Ifx_Shell_CmdLine
	Command line editing state. More...

struct	Ifx_Shell_Protocol
	Shell protocol configuration. More...

struct	Ifx_Shell_Flags
	Shell control flags. More...

struct	Ifx_Shell_Runtime
	internal Shell run-time data More...

struct	Ifx_Shell
	Shell object definition. More...

struct	Ifx_Shell_Config
	Shell configuration. More...

struct	Ifx_Shell_Syntax

Macros
#define	IFX_SHELL_NULL_CHAR '\0'

#define	IFX_SHELL_CMD_HISTORY_SIZE (10)
	Number of commands to store in history. More...

#define	IFX_SHELL_CMD_LINE_SIZE (128)
	max command line IFX_SHELL_CMD_LINE_SIZE - 1 More...

#define	IFX_SHELL_COMMAND_LISTS (1)
	Number of command lists. More...

#define	IFX_SHELL_PROMPT "Shell>"
	Shell prompt. More...

#define	IFX_SHELL_COMMAND_LIST_END {0, 0, 0, 0}
	Marker for end of command list. More...

#define	IFX_SHELL_SYNTAX_LIST_END {0, 0}
	Marker for end of syntax list. More...

#define	IFX_SHELL_CMD_HISTORY_NO_ITEM (-1)
	Signifies no item in use in command history list. More...

Typedefs
typedef boolean(*	Ifx_Shell_Call )(pchar args, void data, IfxStdIf_DPipe io)
	Definition of a callback function which handles a Shell command. More...

Enumerations
enum	Ifx_Shell_ResultCode { Ifx_Shell_ResultCode_unknown = (128), Ifx_Shell_ResultCode_nok = (129), Ifx_Shell_ResultCode_undefined = (130), Ifx_Shell_ResultCode_ok = (255) }
	Result code definition used after each executed Shell command. More...

enum	Ifx_Shell_CmdState { IFX_SHELL_CMD_STATE_NORMAL, IFX_SHELL_CMD_STATE_ESCAPE, IFX_SHELL_CMD_STATE_ESCAPE_BRACKET, IFX_SHELL_CMD_STATE_ESCAPE_BRACKET_NUMBER }
	Shell command processing state. More...

Functions
Basic functionality
void	Ifx_Shell_initConfig (Ifx_Shell_Config *config)

IFX_EXTERN boolean	Ifx_Shell_init (Ifx_Shell shell, const Ifx_Shell_Config config)
	Initialize the shell. More...

IFX_EXTERN void	Ifx_Shell_deinit (Ifx_Shell *shell)
	Deinitialise the shell. More...

IFX_EXTERN void	Ifx_Shell_enable (Ifx_Shell *shell)
	Clear the receive buffer and enable the shell. More...

IFX_EXTERN void	Ifx_Shell_disable (Ifx_Shell *shell)
	Disable the shell. More...

IFX_EXTERN void	Ifx_Shell_process (Ifx_Shell *shell)
	Process the shell. More...

Parsing functions
IFX_EXTERN pchar	Ifx_Shell_skipWhitespace (pchar args)
	Within the context of Shell.call, skip the whitespaces of the args string. More...

IFX_EXTERN boolean	Ifx_Shell_matchToken (pchar *argsPtr, pchar token)
	Match string pointed by the *argsPtr with a given token. More...

IFX_EXTERN boolean	Ifx_Shell_parseToken (pchar argsPtr, char tokenBuffer, int bufferLength)
	Parse a token. More...

IFX_EXTERN boolean	Ifx_Shell_parseAddress (pchar argsPtr, void *address)
	Parse an address. More...

IFX_EXTERN boolean	Ifx_Shell_parseSInt32 (pchar argsPtr, sint32 value)
	Parse a signed 32-bit integer value. More...

IFX_EXTERN boolean	Ifx_Shell_parseUInt32 (pchar argsPtr, uint32 value, boolean hex)
	Parse an unsigned 32-bit integer value. More...

IFX_EXTERN boolean	Ifx_Shell_parseSInt64 (pchar argsPtr, sint64 value)
	Parse a signed 64-bit integer value. More...

IFX_EXTERN boolean	Ifx_Shell_parseUInt64 (pchar argsPtr, uint64 value, boolean hex)
	Parse an unsigned 64-bit integer value. More...

IFX_EXTERN boolean	Ifx_Shell_parseFloat64 (pchar argsPtr, float64 value)
	Parse a 64-bit (double precision) floating-point value. More...

IFX_EXTERN boolean	Ifx_Shell_parseFloat32 (pchar argsPtr, float32 value)
	Parse a 32-bit (single precision) floating-point value. More...

Command list functions
IFX_EXTERN const Ifx_Shell_Command *	Ifx_Shell_commandFind (const Ifx_Shell_Command commandList, pchar commandLine, pchar args)
	Find command in commandList. More...

IFX_EXTERN boolean	Ifx_Shell_showHelpSingle (pchar prefix, const void commandList, IfxStdIf_DPipe io)
	Implementation of Ifx_Shell_Call. Show the help menu from single command list. More...

IFX_EXTERN boolean	Ifx_Shell_showHelp (pchar args, void shellPtr, IfxStdIf_DPipe io)
	Implementation of Ifx_Shell_Call. Show the help menu and list of commands. More...

IFX_EXTERN void	Ifx_Shell_printSyntax (const Ifx_Shell_Syntax syntaxList, IfxStdIf_DPipe io)
	Find command in commandList. More...

Sub protocol functions
IFX_EXTERN boolean	Ifx_Shell_protocolStart (pchar args, void data, IfxStdIf_DPipe io)
	Implementation of Ifx_Shell_Call. Start the ShellBb protocol. More...

IFX_EXTERN boolean	Ifx_Shell_bbProtocolStart (pchar args, void data, IfxStdIf_DPipe io)
	Implementation of Ifx_Shell_Call. Start the ShellBb protocol. More...

Detailed Description

Shell functions.

Version: iLLD_1_0_0_11_0

Copyright: Copyright (c) 2013 Infineon Technologies AG. All rights reserved.

                            IMPORTANT NOTICE

Infineon Technologies AG (Infineon) is supplying this file for use exclusively with Infineon's microcontroller products. This file can be freely distributed within development tools that are supporting such microcontroller products.

THIS SOFTWARE IS PROVIDED "AS IS". NO WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE APPLY TO THIS SOFTWARE. INFINEON SHALL NOT, IN ANY CIRCUMSTANCES, BE LIABLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, FOR ANY REASON WHATSOEVER.

Definition in file Ifx_Shell.h.

Data Structure Documentation

struct Ifx_Shell_Command

Shell command object.

Definition at line 70 of file Ifx_Shell.h.

Data Fields
Ifx_Shell_Call	call
pchar	commandLine
void *	data
pchar	help

struct Ifx_Shell_CmdLine

Command line editing state.

Definition at line 79 of file Ifx_Shell.h.

Data Fields
char *	cmdStr	Pointer to current string containing command line as so far processed.
Ifx_SizeT	cursor	Pointer to variable containing position of cursor in so-far-processed command line.
boolean	historyAdd	If TRUE, when Enter is pressed, the current cmdLine should be added to the command history (in parent)
Ifx_SizeT	historyItem	Item ID in command history list, or IFX_SHELL_CMD_HISTORY_NO_ITEM if not using list (e.g. new command)
Ifx_SizeT	length	Pointer to variable containing total length of command line.

struct Ifx_Shell_Flags

Shell control flags.

Definition at line 109 of file Ifx_Shell.h.

Data Fields
uint16	echo: 1
uint16	echoError: 1
uint16	enabled: 1
uint16	sendResultCode: 1
uint16	showPrompt: 1

struct Ifx_Shell_Runtime

internal Shell run-time data

Definition at line 119 of file Ifx_Shell.h.

Data Fields
Ifx_Shell_CmdState	cmdState
char	cmdStr[IFX_SHELL_CMD_LINE_SIZE]
char	echo[2]
char	escBracketNum
char	inputbuffer[IFX_SHELL_CMD_LINE_SIZE+1]

struct Ifx_Shell

Shell object definition.

Definition at line 131 of file Ifx_Shell.h.

Collaboration diagram for Ifx_Shell:

[legend]

Data Fields
Ifx_Shell_CmdLine	cmd	Current status of command line editing (saves passing many parameters around)
char *	cmdHistory[IFX_SHELL_CMD_HISTORY_SIZE]	Array of pointers to the history entries.
const Ifx_Shell_Command *	commandList[IFX_SHELL_COMMAND_LISTS]	Array of pointers to command list. The pointed location shall be constant during Shell lifetime, e.g. stored in non-volatile memory or as global variable.
Ifx_Shell_Flags	control	control flags
IfxStdIf_DPipe *	io	Pointer to IfxStdIf_DPipe object used by the Shell.
Ifx_Shell_Runtime	locals	Runtime data.
Ifx_Shell_Protocol	protocol	Protocol handler data.

struct Ifx_Shell_Config

Shell configuration.

Definition at line 155 of file Ifx_Shell.h.

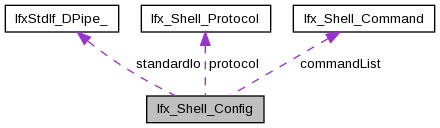

Collaboration diagram for Ifx_Shell_Config:

[legend]

Data Fields
const Ifx_Shell_Command *	commandList[IFX_SHELL_COMMAND_LISTS]	Specifies pointer to the command list.
boolean	echo	Specifies whether each command shall be echoed back to user.
Ifx_Shell_Protocol	protocol	Configuration for the Ifx_Shell_Protocol.
boolean	sendResultCode	Specifies whether the Ifx_Shell_ResultCode shall be sent to user.
boolean	showPrompt	Specifies whether the IFX_SHELL_PROMPT shall be displayed after each command.
IfxStdIf_DPipe *	standardIo	Pointer to a IfxStdIf_DPipe object used by the Shell.

struct Ifx_Shell_Syntax

Definition at line 165 of file Ifx_Shell.h.

Data Fields
pchar	description
pchar	syntax

Macro Definition Documentation

#define IFX_SHELL_CMD_HISTORY_NO_ITEM (-1)

Signifies no item in use in command history list.

Definition at line 55 of file Ifx_Shell.h.

Referenced by Ifx_Shell_cmdEscapeProcess(), Ifx_Shell_init(), and Ifx_Shell_process().

#define IFX_SHELL_CMD_HISTORY_SIZE (10)

Number of commands to store in history.

Definition at line 37 of file Ifx_Shell.h.

Referenced by Ifx_Shell_cmdEscapeProcess(), Ifx_Shell_init(), and Ifx_Shell_process().

#define IFX_SHELL_CMD_LINE_SIZE (128)

max command line IFX_SHELL_CMD_LINE_SIZE - 1

Definition at line 38 of file Ifx_Shell.h.

Referenced by Ifx_Shell_cmdEscapeProcess(), Ifx_Shell_init(), and Ifx_Shell_process().

#define IFX_SHELL_COMMAND_LIST_END {0, 0, 0, 0}

Marker for end of command list.

Definition at line 49 of file Ifx_Shell.h.

#define IFX_SHELL_COMMAND_LISTS (1)

Number of command lists.

Definition at line 41 of file Ifx_Shell.h.

Referenced by Ifx_Shell_commandListFind(), Ifx_Shell_init(), Ifx_Shell_initConfig(), and Ifx_Shell_showHelp().

#define IFX_SHELL_NULL_CHAR '\0'

Definition at line 35 of file Ifx_Shell.h.

Referenced by Ifx_Shell_cmdEscapeProcess(), Ifx_Shell_execute(), Ifx_Shell_init(), Ifx_Shell_isEndOfLine(), Ifx_Shell_parseAddress(), Ifx_Shell_parseFloat32(), Ifx_Shell_parseFloat64(), Ifx_Shell_parseSInt64(), Ifx_Shell_parseToken(), Ifx_Shell_parseUInt64(), Ifx_Shell_process(), Ifx_Shell_showHelpSingle(), and Ifx_Shell_skipWhitespace().

#define IFX_SHELL_PROMPT "Shell>"

Shell prompt.

Definition at line 45 of file Ifx_Shell.h.

Referenced by Ifx_Shell_init(), and Ifx_Shell_process().

#define IFX_SHELL_SYNTAX_LIST_END {0, 0}

Marker for end of syntax list.

Definition at line 52 of file Ifx_Shell.h.

Typedef Documentation

typedef boolean(* Ifx_Shell_Call)(pchar args, void *data, IfxStdIf_DPipe *io)

Definition of a callback function which handles a Shell command.

Definition at line 67 of file Ifx_Shell.h.

Enumeration Type Documentation

enum Ifx_Shell_CmdState

Shell command processing state.

Enumerator
IFX_SHELL_CMD_STATE_NORMAL	Normal - no special sequences being processed.
IFX_SHELL_CMD_STATE_ESCAPE	Escape character has been pressed.
IFX_SHELL_CMD_STATE_ESCAPE_BRACKET	ESC [ pressed.
IFX_SHELL_CMD_STATE_ESCAPE_BRACKET_NUMBER	ESC [ (number) pressed.

Definition at line 89 of file Ifx_Shell.h.

enum Ifx_Shell_ResultCode

Result code definition used after each executed Shell command.

Enumerator
Ifx_Shell_ResultCode_unknown
Ifx_Shell_ResultCode_nok
Ifx_Shell_ResultCode_undefined
Ifx_Shell_ResultCode_ok

Definition at line 58 of file Ifx_Shell.h.
