SPI interface
Collaboration diagram for SPI interface:
|
Data Structures | |
| struct | SpiIf_Flags |
| struct | SpiIf_Job |
| struct | SpiIf_funcs |
| struct | SpiIf_ |
| struct | SpiIf_Config |
| struct | Spi_ErrorChecks |
| struct | SpiIf_ChMode |
| struct | SpiIf_Ch_ |
| struct | SpiIf_ChConfig_ |
Macros | |
| #define | IFXQSPI_BACONSIZE(Datasize) ((((Datasize) % 16)== 0) ? ((uint8)((Datasize)/16)) : ((uint8)((Datasize)/16) + 1)) |
| #define | IFXQSPI_FIFO32BITSIZE(Datasize) (((Datasize) % 4)== 0) ? ((uint8)((Datasize)/4)) : ((uint8)((Datasize)/4) + 1) |
| #define | IFXQSPI_GETLONGMODEFIFOSIZE(Datasize) IFXQSPI_BACONSIZE(Datasize) + IFXQSPI_FIFO32BITSIZE(Datasize) |
Typedefs | |
| typedef struct SpiIf_Ch_ | SpiIf_Ch |
| Alias to the channel structure. More... | |
| typedef struct SpiIf_ChConfig_ | SpiIf_ChConfig |
| typedef struct SpiIf_ | SpiIf |
| typedef SpiIf_Status(* | SpiIf_Exchange )(SpiIf_Ch *handle, const void *src, void *dest, Ifx_SizeT numOfData) |
| typedef SpiIf_Status(* | SpiIf_GetStatus )(SpiIf_Ch *handle) |
| typedef void(* | SpiIf_OnEvent )(SpiIf *handle) |
| typedef void(* | SpiIf_Cbk )(void *data) |
| SPI channel callback prototype. More... | |
| typedef void(* | TxRxHandler )(SpiIf_Ch *handle) |
Enumerations | |
| enum | SpiIf_Status { SpiIf_Status_ok, SpiIf_Status_busy, SpiIf_Status_unknown } |
| SPI Interface Status. More... | |
| enum | SpiIf_SlsoTiming { SpiIf_SlsoTiming_0 = 0, SpiIf_SlsoTiming_1, SpiIf_SlsoTiming_2, SpiIf_SlsoTiming_3, SpiIf_SlsoTiming_4, SpiIf_SlsoTiming_5, SpiIf_SlsoTiming_6, SpiIf_SlsoTiming_7 } |
| Slave select output timing. More... | |
| enum | SpiIf_DataHeading { SpiIf_DataHeading_lsbFirst = 0, SpiIf_DataHeading_msbFirst } |
| Heading. More... | |
| enum | SpiIf_ShiftClock { SpiIf_ShiftClock_shiftTransmitDataOnLeadingEdge = 0, SpiIf_ShiftClock_shiftTransmitDataOnTrailingEdge } |
| Clock phase. More... | |
| enum | SpiIf_ClockPolarity { SpiIf_ClockPolarity_idleLow = 0, SpiIf_ClockPolarity_idleHigh } |
| Clock polarity. More... | |
| enum | SpiIf_Mode { SpiIf_Mode_master, SpiIf_Mode_slave, SpiIf_Mode_undefined } |
Functions | |
| IFX_INLINE void | SpiIf_wait (SpiIf_Ch *handle) |
| IFX_EXTERN void | SpiIf_initConfig (SpiIf_Config *config) |
| IFX_EXTERN void | SpiIf_initChannelConfig (SpiIf_ChConfig *config, SpiIf *driver) |
Virtual functions | |
| IFX_INLINE SpiIf_Status | SpiIf_exchange (SpiIf_Ch *handle, const void *src, void *dest, Ifx_SizeT numOfData) |
| IFX_INLINE SpiIf_Status | SpiIf_getStatus (SpiIf_Ch *handle) |
Detailed Description
Data Structure Documentation
| struct SpiIf_Flags |
| struct SpiIf_Job |
| struct SpiIf_funcs |

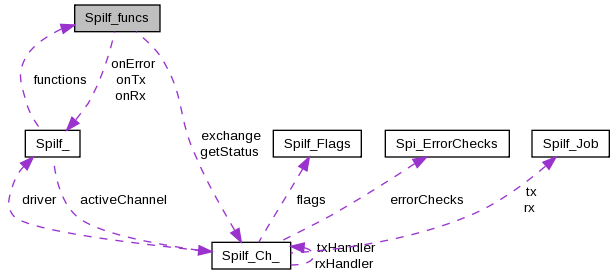

Collaboration diagram for SpiIf_funcs:
| Data Fields | ||
|---|---|---|
| SpiIf_Exchange | exchange | |
| SpiIf_GetStatus | getStatus | |
| SpiIf_OnEvent | onError | |
| SpiIf_OnEvent | onRx | |
| SpiIf_OnEvent | onTx | |
| struct SpiIf_ |
| struct SpiIf_Config |
| Data Fields | ||
|---|---|---|
| void * | buffer | Specifies the buffer location.The buffer parameter must point on a free memory location where the buffer object will be initialised. The Size of this area must be at least equals to "Size + sizeof(Ifx_Fifo) + 8", with "Size=config->bufferSize * Ifx_AlignOn32(sizeof(Spi_Ch*))". Not tacking this in account may result in unpredictable behaviour. |
| Ifx_SizeT | bufferSize | Specifies the number of channels that can be buffered. If 0, buffering is disabled. |
| Ifx_Priority | erPriority | Specifies the priority of the error interrupt. |
| IfxSrc_Tos | isrProvider | Specifies the handler of the interrupts. |
| float32 | maximumBaudrate | Maximum baudrate used by the channels, this value is used to optimise the SPI internal clock. |
| SpiIf_Mode | mode | Specifies the interface operation mode. |
| Ifx_Priority | rxPriority | Specifies the priority of the receive interrupt. |
| Ifx_Priority | txPriority | Specifies the priority of the transmit interrupt. |
| struct Spi_ErrorChecks |
| struct SpiIf_ChMode |
| Data Fields | ||
|---|---|---|
| uint32 | autoCS: 1 | 1 = chip select is controlled by the hardware module or, 0 = by software. |
| uint32 | clockPolarity: 1 | SpiIf_ClockPolarity |
| uint32 | csActiveLevel: 1 | Ifx_ActiveState |
| uint32 | csInactiveDelay: 3 | SpiIf_SlsoTiming |
| uint32 | csLeadDelay: 3 | SpiIf_SlsoTiming |
| uint32 | csTrailDelay: 3 | SpiIf_SlsoTiming |
| uint32 | dataHeading: 1 | SpiIf_DataHeading |
| uint32 | dataWidth: 6 | range 2 .. 32 bits (note 2 = 2-bits, 3 = 3-bits ... |
| uint32 | enabled: 1 | 1 = channel enabled, 0 = channel disabled |
| uint32 | loopback: 1 | 0 = normal mode, 1 = loopback mode |
| uint32 | parityCheck: 1 | 0 = disabled, 1 = enabled |
| uint32 | parityMode: 1 | Ifx_ParityMode |
| uint32 | shiftClock: 1 | SpiIf_ShiftClock |
| struct SpiIf_Ch_ |

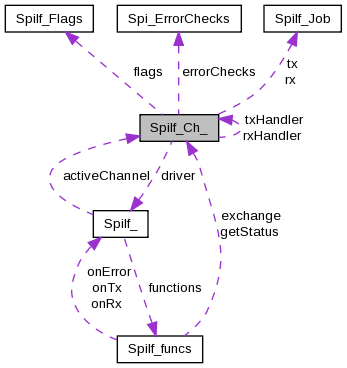

Collaboration diagram for SpiIf_Ch_:
| Data Fields | ||
|---|---|---|
| sint32 | baudrate | Real baudrate. |
| void * | callbackData | Specifies pointer to the user specific data on transmit end. |
| SpiIf * | driver | Pointer to the SPI interface driver. |
| Spi_ErrorChecks | errorChecks | Error checks. |
| SpiIf_Flags | flags | |
| SpiIf_Cbk | onExchangeEnd | Specifies the callback function on end of exchange. |
| SpiIf_Job | rx | |
| TxRxHandler | rxHandler | |
| SpiIf_Job | tx | |
| TxRxHandler | txHandler | |
| struct SpiIf_ChConfig_ |

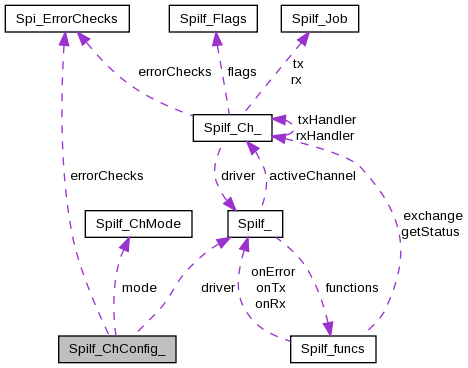

Collaboration diagram for SpiIf_ChConfig_:
| Data Fields | ||
|---|---|---|
| float32 | baudrate | Specifies the SPI baudrate. |
| SpiIf * | driver | Pointer to an implementation of SPI interface driver, e.g. IfxQspi_SpiMaster_ChannelConfig. |
| Spi_ErrorChecks | errorChecks | |
| SpiIf_ChMode | mode | |
Macro Definition Documentation
| #define IFXQSPI_GETLONGMODEFIFOSIZE | ( | Datasize) | IFXQSPI_BACONSIZE(Datasize) + IFXQSPI_FIFO32BITSIZE(Datasize) |
Typedef Documentation
| typedef void(* SpiIf_Cbk)(void *data) |
| typedef struct SpiIf_ChConfig_ SpiIf_ChConfig |
| typedef SpiIf_Status(* SpiIf_Exchange)(SpiIf_Ch *handle, const void *src, void *dest, Ifx_SizeT numOfData) |
| typedef SpiIf_Status(* SpiIf_GetStatus)(SpiIf_Ch *handle) |
Enumeration Type Documentation
| enum SpiIf_ClockPolarity |
| enum SpiIf_DataHeading |
| enum SpiIf_Mode |
| enum SpiIf_ShiftClock |
| enum SpiIf_SlsoTiming |
Slave select output timing.
| enum SpiIf_Status |
Function Documentation
| IFX_INLINE SpiIf_Status SpiIf_exchange | ( | SpiIf_Ch * | handle, |
| const void * | src, | ||
| void * | dest, | ||
| Ifx_SizeT | numOfData | ||
| ) |
Perform the SPI exchange operation.
- Parameters
-
handle Pointer to an implementation of SPI interface driver src Pointer to the start of data buffer for data to transmit dest Pointer to the start of data buffer for received data numOfData specifies number of byte/bit to transfer
- Returns
- STATUS of SPI
- Note
- the src and dest may be the same data location.
| IFX_INLINE SpiIf_Status SpiIf_getStatus | ( | SpiIf_Ch * | handle) |
| IFX_EXTERN void SpiIf_initChannelConfig | ( | SpiIf_ChConfig * | config, |
| SpiIf * | driver | ||
| ) |
Definition at line 40 of file SpiIf.c.
Referenced by IfxQspi_SpiMaster_initChannelConfig(), and IfxQspi_SpiSlave_initModule().
| IFX_EXTERN void SpiIf_initConfig | ( | SpiIf_Config * | config) |
Definition at line 27 of file SpiIf.c.
Referenced by IfxQspi_SpiMaster_initModuleConfig(), and IfxQspi_SpiSlave_initModuleConfig().
| IFX_INLINE void SpiIf_wait | ( | SpiIf_Ch * | handle) |
